Thinkgreen offers wide range of FRP Cable Trays to its customers. The cable trays are manufactured via automated Pultrusion process which ensures very superior and consistent quality trays. Thinkgreen FRP Cable Trays are extremely durable, resistant to all kinds of chemical attack, superior quality and ultra low cost. FRP Cable Trays can be used in the most corrosive and structurally demanding environments across the globe; including, Offshore Platforms, Chemical Plants, Oil and Metal Refineries, Water Treatment Plants and many more industries. Considering all kinds of instrumentation and cable runs, Thinkgreen offers two types of Cable Trays:
FRP Cable Trays

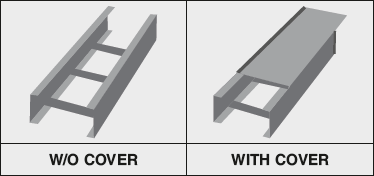

FRP Ladder Type Cable Tray
Cable trays provide a support system for managing cables in a Building or other places. Cable tray installation provide instant approach to maintain and replacement of cables without any difficulty. They give excellent ventilation and enhance life of cables.
Thinkgreen offers high strength ladder type cable trays that are perfect for heavy-duty power distribution in industries.

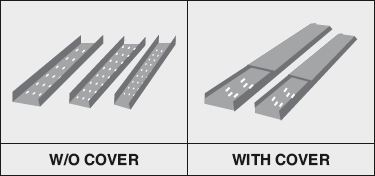

FRP Channel Type Cable Tray (Perforated)
Thinkgreen offers the most extensive range of perforated type cable trays, which are used for the installation of cables, smaller & controlled cables. These trays can accommodate large number of branch lines and have high load-bearing capacity.
Perforated cable trays can be hung using a center rod support, C-hanger or two-trapeze configuration. They can also be mounted on a wall using brackets. For further security, these cable trays are also available with covers. We can also customize the products depending upon the specific requirements.
| DESCRIPTION | THINKGREEN FRP CABLE TRAYS | GALVANISED IRON | MILD STEEL |
|---|---|---|---|
| Strength to Weight Ratio | Excellent | Good | Low |
| Life Cycle Cost | Low | Moderate | Moderate |
| Rust Proof Features | Excellent | Average | Excellent |
| Chemical Resistance | Excellent | Low | Low |
| Life Span | Excellent | Low | Good |
| Acid Fumes Resistance | Excellent | Moderate | Low |
| Electrical Conductivity | Low | High | High |
| Fire Retardant | High | High | High |
| Corrosion Resistance | Excellent | Low | Low |
| Ease in Installation | Excellent | Moderate | Moderate |
| Environment Impact | Low | High | High |
| Colour Selection | Excellent | NA | NA |
| Cost | Low | Moderate | Low |
Resin Selection Chart
| Resin Type | Grating Type | Description | Application |
|---|---|---|---|
| Vinyl Ester | Type VE | Superior Corrosion Resistance | Environment with high corrosion problems. |
| Flame Resistant Vinyl Ester | Type VE-FR | Superior Corrosion & Flame Resistance | Environment with high corrosion requiring better flame resistance. |
| Isophthalic Polyester | Type IP | Industrial Grade Corrosion Resistance | Used in the environments of normal or less concentration inorganic acid, alkali, etc. |
| Flame Resistant Isophtalic Polyester | Type IP-FR | Industrial Grade Corrosion & Flame Resistance | Used in less concentrated inorganic acidic areas requiring better flame resistance. |
| Orthophthalic Polyester | Type OP | Moderate Grade Corrosion Resistance | For use in environment which requires water & weather proof solution. |
Details of FRP Cable Tray
| DESCRIPTION | FRP PERFORATED CABLE TRAY | FRP LADDER TYPE CABLE TRAY |
|---|---|---|
| RESIN | Polyester – Isophthalic – Vinylester | Polyester – Isophthalic – Vinylester |
| GLASS | ECR Boron Free Grade | ECR Boron Free Grade |
| LENGTH | 3 – 6 Meters | 3 Meters |
| WIDTH | 50 – 300 mm | 150 – 1000 mm |
| RUNG CONSTRUCTION | NA | FRP Square Tube |
| RUNG SPACING | NA | 300 mm |
| COUPLER PLATES | GRP FRP with SS Bolts | GRP FRP with SS Bolts |
| ANGLE OF BENDS | 90° – 45° | 90° – 45° |
| RADIUS OF BENDS | 300 mm | 300 mm |
| FIRE RETARDANT | As Per IS 6746 | As Per IS 6746 |
Benefits
Superior resistance to a broad range of chemicals. Unaffected by moisture or immersion in water when sealed. Will not rust like metal and will not rot like wood.
Can be field fabricated using simple carpenter tools and is easily lifted into place during installation.
Resists impact, non-denting and hard to break. Pigmented resin, surfacing veil and UV-Inhibitors prevent moisture absorption and warping.
A wide variety of profiles can be made in FRP for many different markets. Multiple resin types and custom color options are available.
Fiberglass profiles generally weigh 75-80% less than similar steel shapes and 30% less than similar aluminum shapes.
Will not permanently deform under impact. Corrosion resistance eliminates need for constant painting and upkeep. Provides long-term, cost effective solutions with lower life cycle costs.
Stronger than steel and aluminum, pound-for-pound in lengthwise direction. This makes holding, using and transporting easier.
Low electrical and thermal conductivity properties and high dielectric capability. This means it won’t spark or conduct electricity, nor will it transmit cold or heat to the hands.
Market Solutions
Thinkgreen works every day to provide solutions to tough engineering and design challenges like the examples shown here. The unique properties possible with fibre composite materials offer cost-effective solutions. As engineers become aware of the features and benefits of our profiles, the range of applications for composite materials continues to grow.
Architectural
Thinkgreen manufactures numerous products used in the architectural market. From walkways and handrail, to fully customized shapes like the one above, Thinkgreen’s fiberglass composites are strong, light weight, corrosion resistant and durable.
Building / Construction
Thinkgreen’s FRP is being used to save weight, increase corrosion resistance, provide aesthetic beauty and reduce maintenance costs. Thinkgreen can manufacture a variety of profiles used in building and construction.
Cellular
Thinkgreen’s FRP products can be used in cellular industry. anywhere that electro-magnetic (EMI) or radio frequency interference (RFI) is a concern.
Coastal / Marine
Fiberglass handrail, grating, decking, structural shapes and plate from Thinkgreen offer an attractive, low-maintenance and long-lasting alternative to steel and wood in corrosive marine and freshwater environments.
Water / Wastewater
Whether you need a potable water tank, chemical storage tank or an Effluent treatment plant, Thinkgreen offers a wide range of fiberglass solutions for the water and wastewater treatment industries.
Hotel / Motel
Constant maintenance at hotel and motel facilities have driven many operators to select Thinkgreen FRP to replace traditional materials, especially in exterior handrail, stairways and walkways and water play areas.
Electric Utility
The high strength to weight ratio, low electrical conductivity and proven durability of Thinkgreen’s FRP make it an attractive option for electric utilities seeking to upgrade or install new materials.
Infrastructure
Thinkgreen is actively involved in the advancement of FRP technology for civil infrastructure applications. These efforts include the research and development of new products as well as in the establishment of engineering and performance standards.
Mining
Engineers and end-users are replacing traditional materials with fiber reinforced polymers (FRP) in corrosive mining environments. FRP provides lower life cycle costs, offers outstanding performance and provides superior quality.
Oil & Gas
Thinkgreen’s structural composites have proven to be an effective long term solution in the Oil and Gas market. Weight savings, durability, and resistance to salt air and seawater are just a few of the benefits which fiberglass composites provide over steel.
Pulp & Paper
FRP has been widely accepted for use in the Pulp and Paper industry due to its durability, corrosion resistance and abrasion resistance, high strength to weight ratio, low maintenance, cost, and ease of design.
Ladder Rail
Originally developed for electrical utility workers, fiberglass ladders now hold a significant share of the overall ladder market. Ladders made with Thinkgreen FRP rails are steadily replacing those made with aluminum and wood.
Industrial
Thinkgreen offers the broadest range of industrial grade fiberglass structural material, systems and fabricated structures available from a single source. The proven durability over time of Thinkgreen’s broad range of existing profiles makes Thinkgreen a well-known name in the Industrial market. The added ability to develop custom profiles for specialty applications makes Thinkgreen an attractive option for potential customers.
